CNC Router with Superior Bed and Electronics
Customers can avail from us a defect-free range of optimum grade CNC Router Beds. These CNC router beds are manufactured by our team of experts using excellent quality raw material in compliance with the industry laid standards & norms. To meet the exact requirements of our patrons, we are offering these CNC router tools in various grades, sizes and other specifications.
Enlisted below are the superb features of these CNC router beds:
Smooth operation
Superlative performance
Corrosion resistance
High wear & tear strength

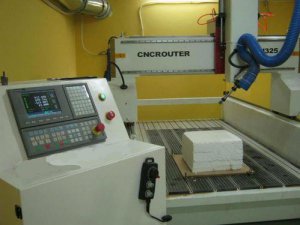

Features of CNC Router H 1325 with 4th axis
• Working area 1300*2500*400 mm
• Adopt 3.5 Kw Spindle with Japanese made NSK bearing
• Adopt Taiwanese made HIWIN Linear rail
• Adopt Taiwanese made Delta invert
• 21 pcs cutting-tools( or called blade or drill bits)
• France made Type3 Software
• Cast steel gantry and weld structure to make sure the stable
Guarantee and Technical support
• Provide one year after-sale service with our customer. Service manual and tool will be given along machine.
• All the spare parts will be maintained for free and change for free for one year
• Life long service support on payable basis
Description
Parameter
X, Y, Z Working Area
1300x2500x400mm
Table Size
1320×3040mm
X, Y, Z Traveling Positioning Accuracy
±0.05/300mm
X, Y, Z Repositioning Positioning Accuracy
±0.05mm
Table Surface
PVC
Frame
Welded Strucutre
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure
Ball Screw, Hiwin Rail Linear Bearings
Max.Power Consumption (Without spindle)
2.0Kw
Max.Rapid Travel Rate
32000mm/min
Max.Working Speed
20000mm/min
Spindle Power Motor
3.5Kw
Spindle Speed
0-18000RPM
Drive Motors
Stepper Motors
Working Voltage
AC380/50Hz,3PH
Command Language
G Code
Operating System
WinCnC PC Software /DSP System
Interface
PCI / Parellel Port / USB
Flash Memory
128M(U Disk for DSP system only)
Collet
ER25
X, Y Resolution
0.02mm
Software Compatability
Type3 software, Wentai software, Artcam software
Running Environment
Temperature: 0- 45C
Relative humidity: 30%-75%
Packing Size
Seperated:3200X1960X1340mm
Integrated: 3200X1960X1870mm
Net Weight
1260KG
Gross Weight
1500KG
